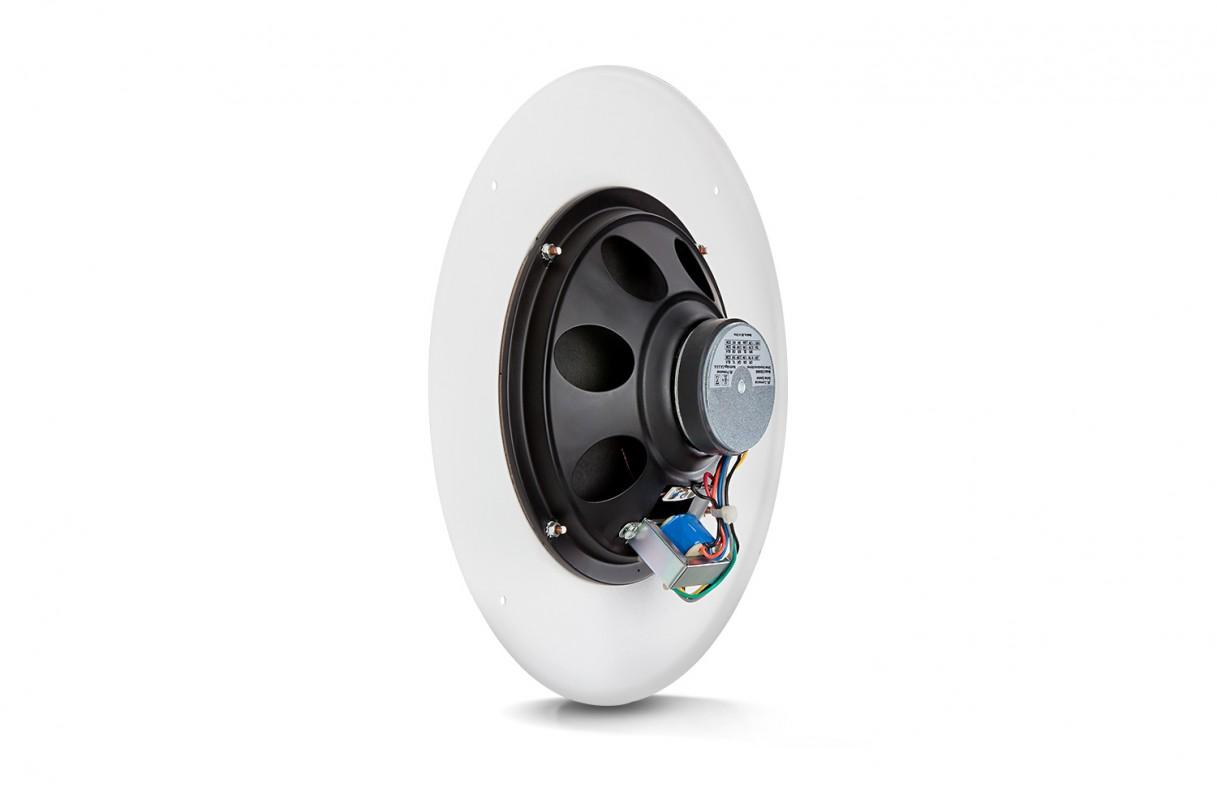

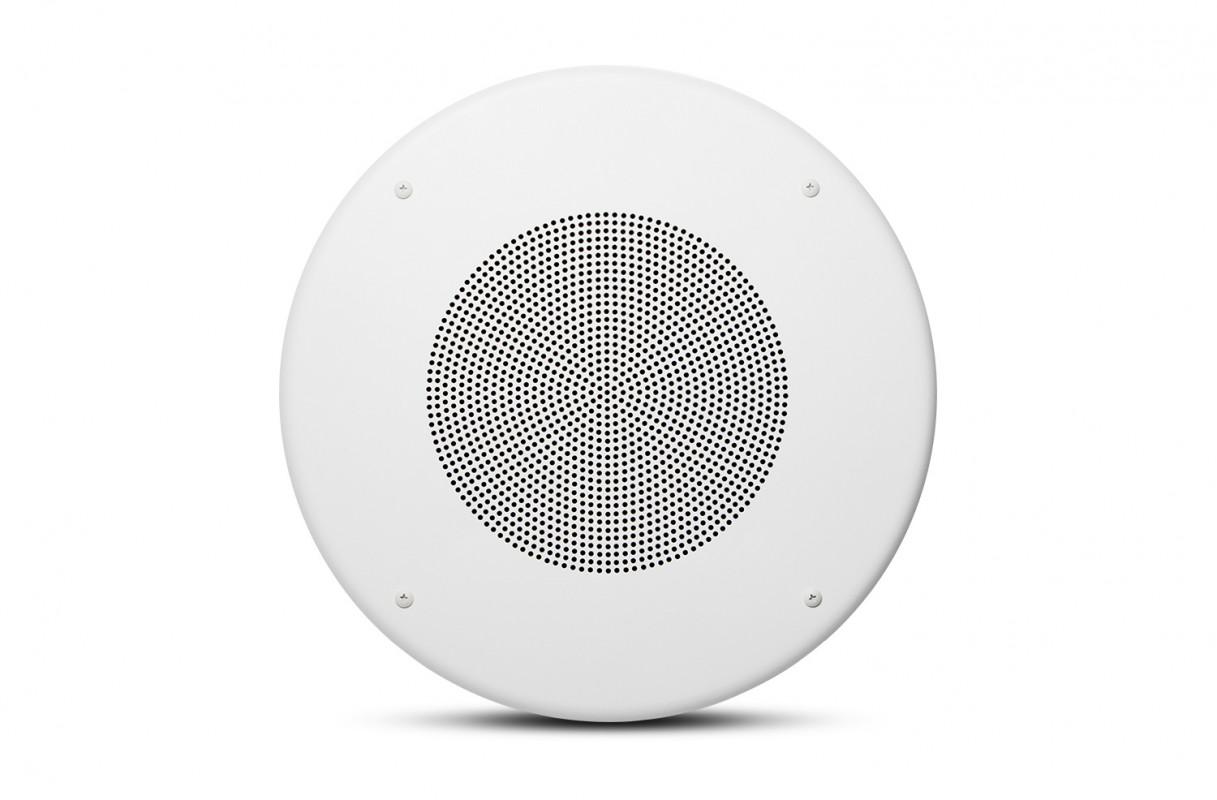

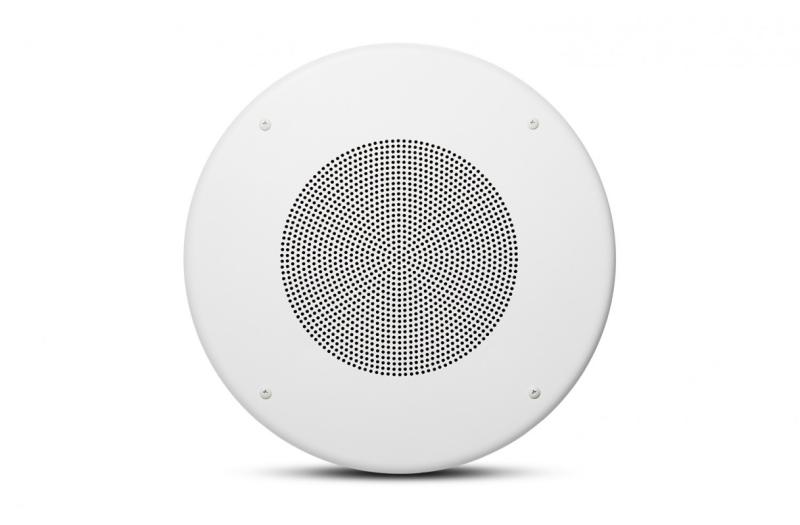

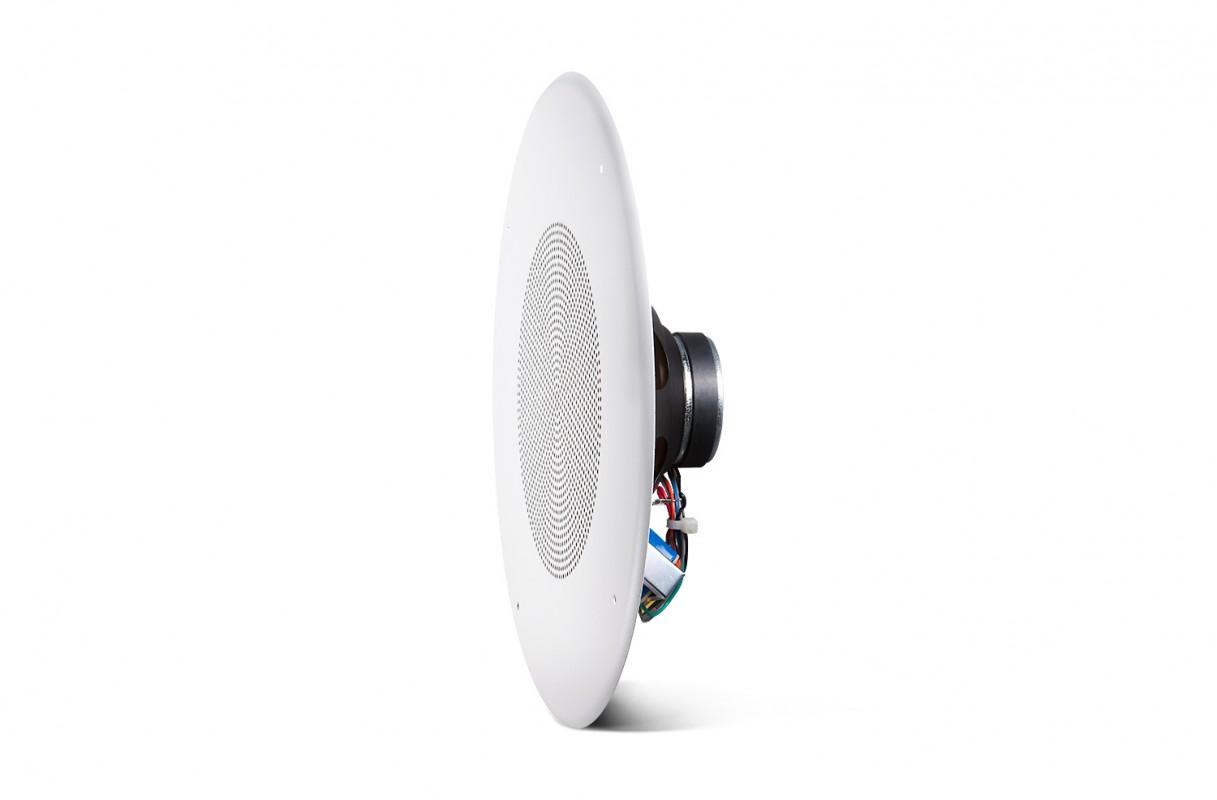

Drivers 200 mm (8 in) Full-Range Sensitivity 96 dB (2k - 6k Hz) Frequency Range (-10 dB) Driver/Grille Assembly 55 Hz – 16 kHz Installed in CSS-BB backcan 100 Hz – 16 kHz Coverage Angle 120° conical Driver Continuous Power Handling 15 Watts Transformer Taps 5W, 2.5W, 1.3W Transformer Taps 5W, 2.5W, 1.3W, 0.7W Transformer Taps 5W, 2.5W, 1.3W, 0.7W Transformer Insertion Loss 1.5 dB Maximum Transformer Connection Bare wire Motor Mass 200 g (7 oz) Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. Matching CSS Backcan CSS-BB8 (0.15 cu ft) Other Compatible Backcans MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft) Bolt Mounting Circle to Backcan 4 points on 286 mm(11.25 in) diameter Cutout DiameterOpen-back 216 mm (8.5 in) In CSS-BB backcan 295 mm (11.7in) Depth (behind grille) 71 mm (2.8 in) Grille Diameter 327 mm (12.9 in) Net Weight (each) 1.27 kg (2.8 lb) Shipping Weight (ea) 1.94 kg (4.3 lb) Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan. Power Rating See transformer taps Transformer Taps 100V Taps - 5W, 2.5W, 1.3W70V Taps - 5W, 2.5W, 1.3W, 0.7W25V Taps - 5W, 2.5W, 1.3W, 0.7W Maximum SPL (1m) 103 dB (top 25V/70V/100V tap) Input Connectors Bare wire Color White Backcan formed steel (accessory) Baffle/Rim Metal Ceiling Cutout Size 216 mm (8.5 in) Plenum Usage Yes, with accessory backcan

Hol vásárolható meg

Global Dj Shop

15 900 Ft

Részletek
